Product details

Product Description

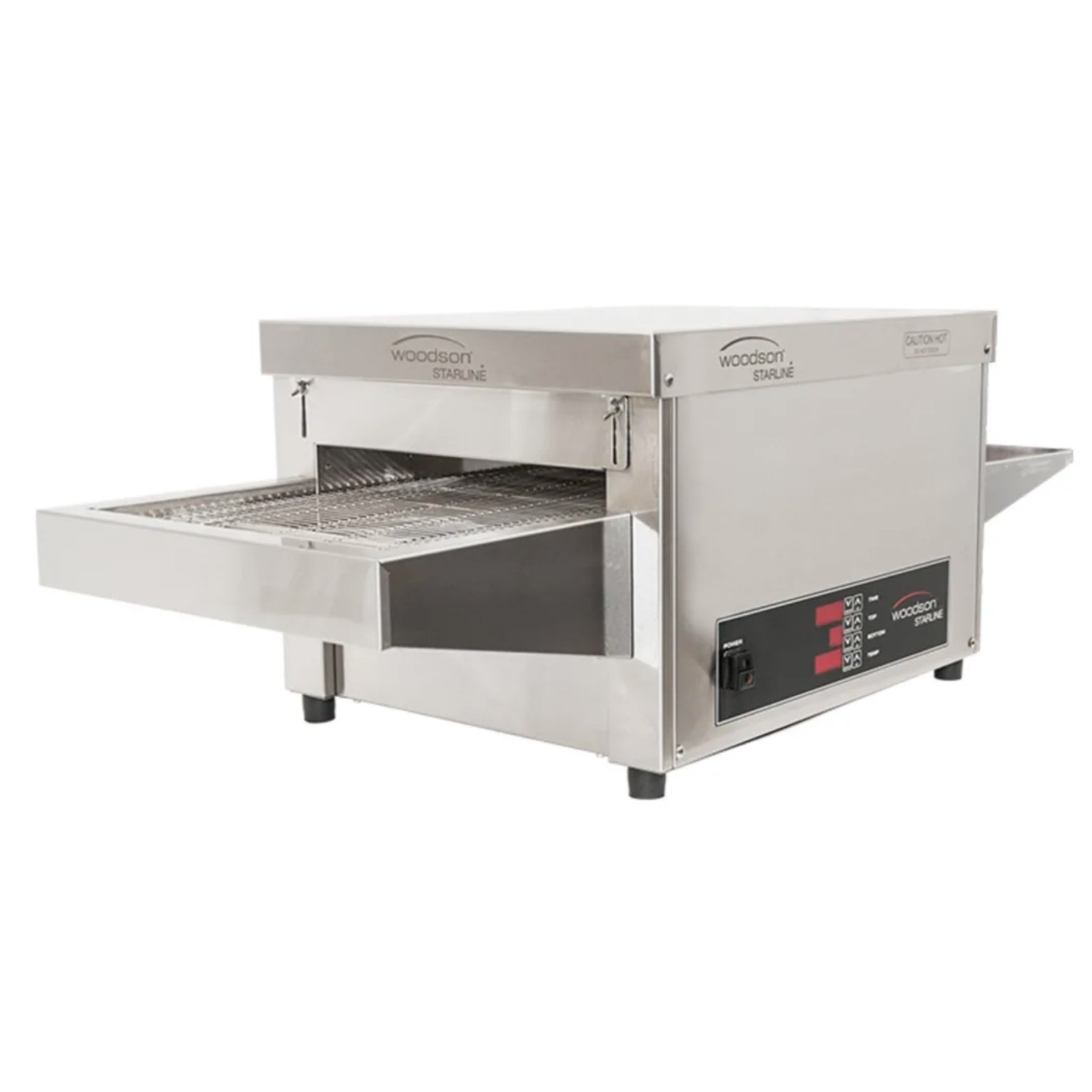

• 305mm belt width conveyor oven
• Stainless steel construction
• Touchpad ‚Äúset and forget‚Äù control system
• Energy efficient pulse power independent temperature controls for top and bottom elements
• 2 metre lead and fitted with single phase 20A 3 flat pin capture plug
• Chamber dimensions of 375 wide and 500 long with 85mm clearance
• Overall dimensions of 1000 x 445 x 465mm
• Electrical rating of 4.8kW - 20A
• W.CVS.SE.20 supplied with 2 metre lead and 20 Amp single phase 3 round pin capture plug for fitting on site to a suitable industrial style outlet, connected to a 4mm¬? cable
• Units configured for right to left conveyor operation as standard. Left to right operation is available upon request and can be selected at time of order by adding an ‚ÄúL‚Äù to end of the model number
Optional Accessory: Factory fitted single phase 32 Amp 3 round pin capture plug (Must be selected at time of order and must be connected on site to a suitable industrial style outlet)

More Information
Product Code W.CVS.SE.20-bundle
Depth 44.5 cm
Height 46.5 cm
Width 100 cm
Brand Woodson
Power Rating 3.6 kW, 15 Amp
Specifications
Product height
46 mm
Product depth
44 mm
Product width
100 mm
Packaging height
56 mm
Packaging depth
636 mm
Packaging width
120 mm
Packaging weight
42.55 kg
Electrical power
4.8kW 20A / 3 round pin capture plug & lead fitted
