Baratta PEIME-330 Electric 330 litre Mixing Jacketed Kettle with Auto Mixing | Auto tilt

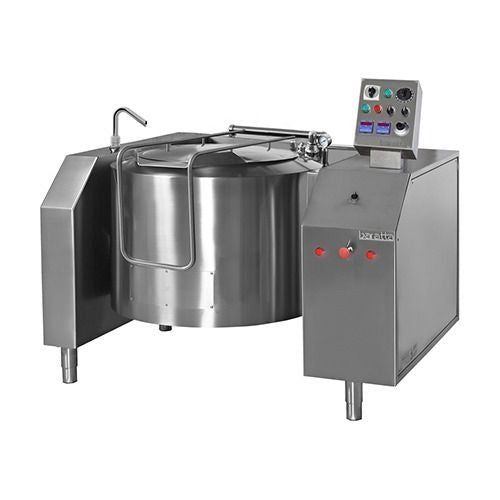

The Baratta PEIME-330 Electric Jacketed Steam Kettle with auto Mixer exemplifies advanced engineering and durable construction, perfectly tailored for the rigorous demands of professional kitchens and food processing facilities. Built for intensive use, it features robust construction entirely from AISI 304 stainless steel, while the jacketed tank is crafted from heavy-gauge, marine-grade AISI 316 stainless steel, making it suitable for even acidic products. The lid is also made of AISI 304 stainless steel and includes a special device that balances the weight, and is completely motorised 0facilitating easy opening. This design is further enhanced by best-in-class insulation layers that limit heat loss while optimizing consumption and yield, along with a large, thick-rayed bottom base that ensures optimal thermal efficiency and long-lasting durability. The quality of materials and construction guarantees longevity and meets the highest hygiene standards, making washing and sanitization easy.

The PEIME-330 boasts an indirect electric heating system powered by 37.2 kW armored heating elements, heating the water in the jacketed wall cavity. This heated water generates steam that gently transfers heat to the product being cooked, ensuring even distribution across the entire surface of the 330-liter tank, minimizing the risk of food sticking and resulting in perfect cooking outcomes.

The water jacket includes a safety valve and manometer to monitor and regulate pressure levels, ensuring optimal operation and safety. The cavity features a pressure gauge set to 0.45 bar, and an automatic cavity water loading system maintains correct water levels, eliminating the risk of running dry and preventing potential damage.

Temperature control is precise, featuring an electronic thermostat with a core temperature probe that allows for accurate regulation within a range of 30°C to 105°C. The control and safety thermostat, located beneath the tank, ensures both safety and accuracy. This controlled indirect temperature control, combined with mixing, enables the preparation of various products without adhering to the bottom and without requiring user intervention.

This indirect cooking method is further enhanced by mixing arms equipped with food-grade Teflon scrapers on both the bottom and sides of the tank, ensuring thorough mixing and preventing food adhesion. The heavy-duty AISI 316 marine-grade stainless steel mixing arms feature adjustable speeds and the ability to reverse, allowing the product to be cooked and mixed without operator intervention. Once the data is set on the control panel, the machine autonomously executes the entire cooking cycle, alerting users with an acoustic signal at the end of the process.

The PEIME-330 features an electric tilting mechanism powered by a robust gear motor, enabling effortless emptying of the tank while minimizing manual effort. Its heavy-gauge stainless steel lid is also motorized, utilizing a gear motor and two-hand safety controls for easy lifting. With an IP54 water protection rating, the kettle is well-protected against dust and water splashes, making it ideal for various kitchen environments. Additionally, electronic phase control, complete with a safety lamp, alerts users to any electrical phase issues, providing an added layer of safety.

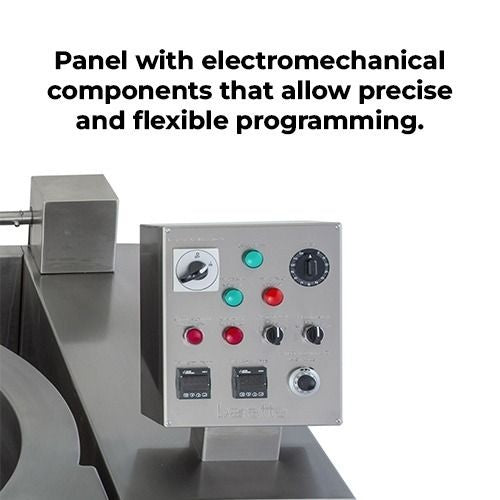

The PEIME series is equipped with a durable control panel featuring electromechanical components that facilitate precise and flexible programming. Strategically located above the unit, the panel allows for easy cleaning and safe sanitization. This design ensures that cooking can be repeated continuously and autonomously, enhancing the efficiency and reliability of the cooking process.

The PEIME offers a variety of options, including the installation of a quick drain valve upon request. The DIN50 connection allows the kettle to be connected to a container, packaging machine, or transfer pump, enhancing its versatility in various applications.

With over 40 years of industry experience, Baratta’s technological expertise is evident in the PEIME-330. The company’s commitment to continuous research and innovation ensures that their equipment not only meets but exceeds current standards for strength, functionality, and ease of maintenance. Baratta’s dedication to quality and reliability is reflected in thousands of successful installations across diverse settings, reinforcing their position as a leader in providing high-quality solutions for professional kitchens and food processing operations.

SilverChef
WEEKLY $833.88
DAILY $118.80
Minimum 12 Months via SilverChef Inquire Now
×

Enter Details

Stock is held at our Mattys warehouse or at one of our supplier warehouses across Australia.

Call 1300 628 897 to confirm your collection location and ready-by date before placing your order.

Product details

Product Description
  • Heavy-duty robust construction built entirely from heavy gauge AISI 304 / 316 stainless steel and designed for intensive industrial use.
  • Constructed with the highest quality materials and components, ensuring longevity, ease of maintenance, and adherence to the highest hygiene standards for cleaning and sanitization
  • Designed and constructed with best-in-class insulation layers that minimize heat loss, optimize energy efficiency, and enhance cooking yield
  • Heavy duty 330 litre Jacketed Tank constructed entirely from heavy-gauge AISI 316 stainless steel.
  • Thick-Rayed AISI 316 stainless steel bottom base enhances thermal efficiency and stability, ensuring optimal heat distribution and durability during intensive use.
  • AISI 304 heavy-gauge stainless steel lid is completely motorised lid and includes two-hand safety controls
  • Electric tank tilting mechanism powered by a robust gear motor, enabling effortless emptying of the tank.
  • Heavy-duty AISI 316 stainless steel mixing arms with food-grade Teflon scrapers on the bottom and walls of the tank. These mixing arms ensure seamless mixing, prevent food adhesion, and operate autonomously without user intervention.
  • The mixing arms are controlled by a variable-speed knob, powered by a durable direct-drive motor with an inverter for versatile cooking, including a reverse function.
  • Indirect electric heating system powered by 33.2 kW armored heating elements heats the water in the jacketed wall cavity, generating steam for even heat distribution while minimizing food sticking, ensuring perfect cooking results.
  • Water jacket equipped with a safety pressure relief valve and manometer for monitoring pressure levels, with a pressure gauge set to 0.45 bar, ensuring optimal operation and safety
  • Automatic water loading system prevents the tank from running dry, safeguarding against any potential damage.
  • Maximum and minimum water level jacket valves are fitted to regulate the distilled water level within the water jacket, which is automatically topped up by the standard automatic water loading device.
  • Electronic bottom thermostat control with safety level regulates temperatures from 30°C to 105°C.
  • Electronic core probe temperature control in the tank ensures precise regulation of product temperature throughout the cooking process
  • Safety thermostat ensures added protection during operation.
  • IP54 water protection rating safeguards the Boiling pan against dust and water splashes, making it suitable for various kitchen environments.
  • Safety lamp alerts operators if any electrical phase issues occur ensuring enhanced safety.
  • The electromechanical control panel enables precise programming of cooking functions and is positioned above the unit for easy cleaning, reliability, and ease of use.
  • Acoustic alert signals the completion of a programmed cooking cycle
  • Extensive range of options and accessories to meet the every possible application.
  • Backed by over 50 years of industry experience, Baratta continually innovates to exceed standards for strength, functionality, and maintenance, af?rming its leadership in high-quality kitchen solutions.

Power Source: Electric
Voltage: 400/3+N/50
Power: 37.2 kW
Plug Supplied: No
Litre Capacity: 330L
Temperature Range: 30°-105°C
Tilt Type: Automatic
Lid Lift Type: Automatic
Control Type: Electromechanical
Warranty: 2 years parts and labour

Inclusions:

Water Jacket Air Exhaust System

Automatic Water Loading

Core Well Probe

Core Temperature Probe

Complete Safety Valve Group

(i) Water Jacket Water Load

(ii) Depression Valve

(iii) Safety Valve

(iv) Manometer



External Width : 1770mm
External Depth : 1425mm
External Height : 1070mm

Specifications
Product height
1070 mm
Product depth
1425 mm
Product width
1770 mm
Packaging height
1320 mm
Packaging depth
1500 mm
Packaging width
1800 mm
Packaging weight
900 kg
Electrical power
37.2 kW
