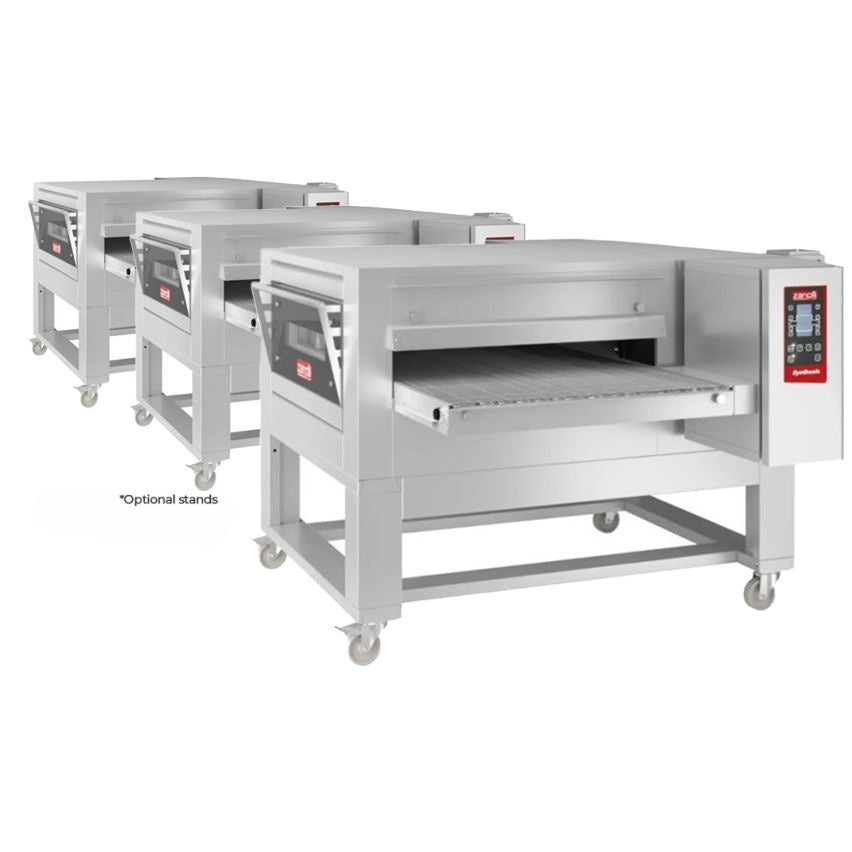

Zanolli Synthesis 3-12-100G Production Series Triple 40-Inch Electric Impingment Conveyor Oven

$138,270.00 Incl. GST$125,700.00 Excl. GST
OFF
Excl. GST

Zanolli Synthesis 3-12-100G Production Series Triple 40-Inch Electric Impingment Conveyor Oven

The Zanolli Synthesis 3-12-100G Production Series Gas Impingement Conveyor Oven is designed for high-demand environments and large-scale production, delivering exceptional performance and efficiency. This advanced gas conveyor oven features three 40-inch wide conveyor belts, connected horizontally within a single unit. With an impressive 166 MJ/hr of heating power per unit, the conveyor belts extend a robust 6660 mm in length, making this oven ideal for high-volume production. Constructed from durable stainless steel, it combines a sleek, modern appearance with a cool-to-the-touch exterior, enhanced by its integrated cooling system for user safety and comfort.

Configured as a single, horizontal production unit with three conveyor lines, the Synthesis 3-12-100G allows for the simultaneous cooking of various products across all three belts, optimizing capacity and productivity. The system is controlled by a single main controller, providing centralized management for seamless operation. This design is perfect for busy kitchens where efficiency and adaptability are crucial. Maintenance is straightforward, with easy access to all areas for cleaning and hygiene purposes.

The oven is equipped with advanced air impingement technology, utilizing piercing jets of hot, turbulent air to ensure rapid and consistent cooking. Coupled with a sophisticated ventilation system, this technology guarantees even cooking results by fully enveloping the product as it moves along the conveyor belts. Three full-width double-glazed doors provide clear visibility into the cooking chambers while minimizing heat loss and enhancing energy efficiency. This design also facilitates easy placement and removal of cooking items, even when they are halfway through the cooking process.

The advanced control board offers precise customization with up to 10 distinct cooking programs, allowing users to fine-tune temperature settings and set cooking timers. It also manages energy consumption through electronic min/max flame controls, contributing to significant savings and efficient operation. The BRP (power regulation) system enables the oven to reach working temperature in just 20 minutes. The balanced temperature detection system, managed via dual oven probes, ensures precise and consistent cooking results. Additionally, the control board supports two automatic start-ups per day, ensuring perfectly timed cooking.

The Economy function maintains a lower temperature when the oven is not in use, further reducing costs and enhancing energy efficiency. It also manages the movement of the conveyor belts, providing added operational flexibility. The oven heats up in just 20 minutes and reaches a maximum temperature of 320°C, supported by its efficient gas heating system.

Operating with minimal noise due to its low-noise conveyor and ventilation systems, the Synthesis 3-12-100G is one of the quietest gas conveyor ovens available. It effectively handles a variety of foods, from large pizzas to steaks and pastries, making it a versatile choice for high-demand cooking environments. An optional heavy-duty stand with omnidirectional wheels and brakes adds to its versatility and ease of use.

As a gas conveyor oven with cutting-edge technology, the Synthesis 3-12-100G exemplifies Zanolli’s commitment to innovation and reliability. Since 1952, Zanolli has been a leader in conveyor oven technology, and the Synthesis series continues to reflect their expertise in delivering exceptional performance and efficiency.

SilverChef
WEEKLY $1,595.42
DAILY $227.29
Minimum 12 Months via SilverChef Inquire Now
×

Enter Details

Product details

Product Description
    _x000D_
  • Constructed entirely in stainless steel
    • _x000D_
  • Triple double-glazed full-width inspection door facilitates easy loading and unloading of products at any point during the cooking process.
    • _x000D_
  • The oven offers convenient access to all areas for cleaning and hygiene.
    • _x000D_
  • In built cooling system for all external parts ensures oven is cool to touch and work with.
    • _x000D_
  • Heavy duty construction with reliable and durable components.
    • _x000D_
  • Triple Horizontally Connected units for high Production needs.
    • _x000D_
  • Latest advancements in air impingement technology allow for rapid heating & cooking of all foods consistently at all times.
    • _x000D_
  • The piercing jets of hot turbulent air encompass every part of the oven delivering exceptional results every time
    • _x000D_

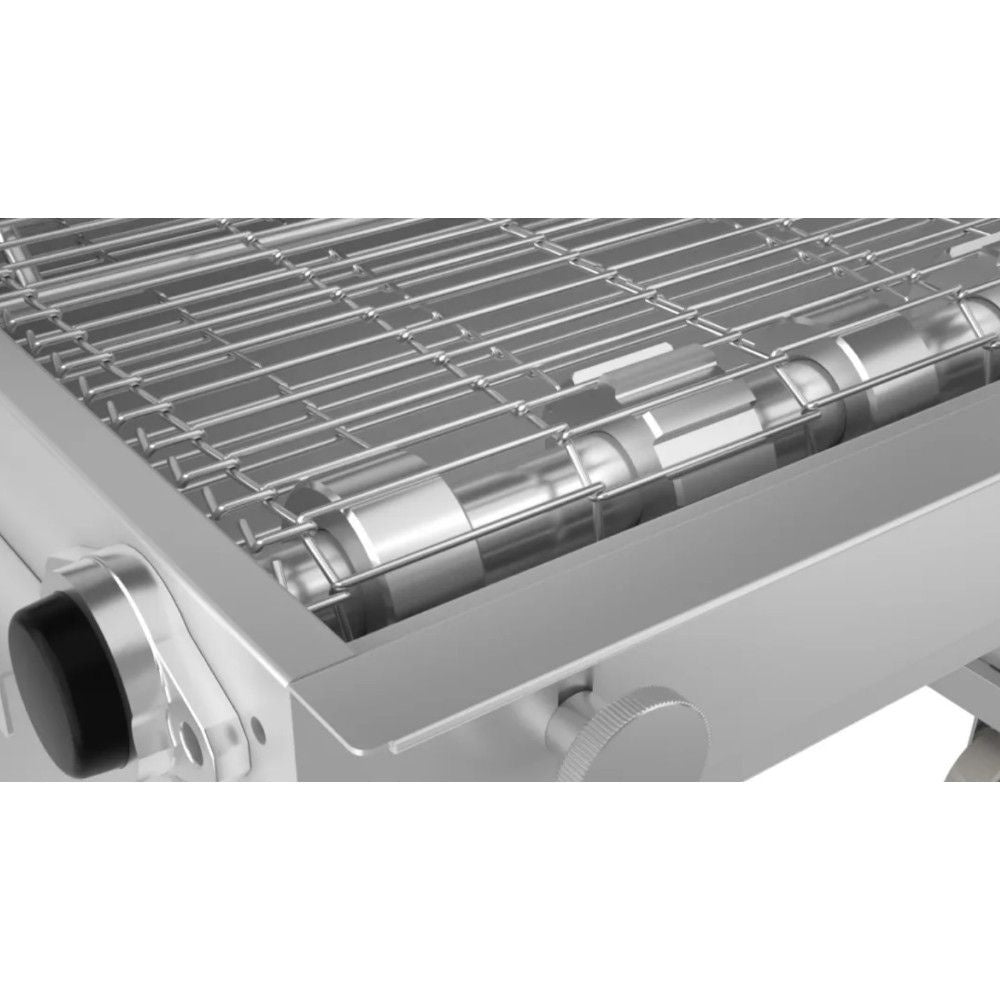

  • The advanced ventilation system ensures even cooking by directing jets of hot air that fully wrap around the product as it moves along the wire mesh conveyor. This precise airflow guarantees consistent results with every use.
    • _x000D_
  • Maximum silence of the mesh conveyor system and ventilation motors.
    • _x000D_
  • BRP (power regulation) system reaches working temperature in 20 minutes
    • _x000D_
  • Balanced temperature detection system managed via dual oven probes.
    • _x000D_
  • Maximum cooking temperature up to 320 ¬∞C
    • _x000D_
  • The Economy function allows the oven to maintain a lower temperature when idle, saving energy and reducing costs. It also controls the wire mesh conveyor, serving a dual purpose.
    • _x000D_
  • The advanced control board is highly customizable and programmable, allowing for up to 10 distinct programs with precise control over the temperature and the cooking timer. Each program can also be named and numbered for easy identification.
    • _x000D_
  • The control board additionally supports two automatic start-ups per day, using your selected program to ensure your cooking is always perfectly timed.
    • _x000D_
  • The advanced control board, with a single controller for both ovens, manages the large single conveyor belt, allowing the belt speed to be adjusted all the way down to a complete stop.
    • _x000D_
  • The advanced Economy function maintains a lower temperature when idle, reducing energy costs. It also controls the wire mesh conveyor, serving a dual purpose beyond temperature management.
    • _x000D_
  • Optional Heavy duty stand with omnidirectional wheels and brake
    • _x000D_
_x000D_



_x000D_

Configuration: Single Stack
Power Source: Gas
Voltage: 240V
Watts: 2.64 kW x 3
Plug Supplied: Yes
Plug Type: 10A plug x 3
Temperature: 320°C (max)
Conveyor Speed: 1-10 min
Conveyor Width: 40"
Conveyor Size: 6660 x 1010 mm
Warranty: 2 years parts & labour

_x000D_


Internal Width: 3250 mm
Internal Depth: 1010 mm
Internal Height: 100 mm

_x000D_


External Width: 6350 mm
External Depth: 1773 mm
External Height: 710 mm

Specifications
Product height
100 mm
Product depth
1010 mm
Product width
40 mm
Packaging height
1380 mm
Packaging depth
1800 mm
Packaging width
2280 mm
Packaging weight
5290.8 kg
Electrical power
2.64 kW
Gas power
166 MJ/h
