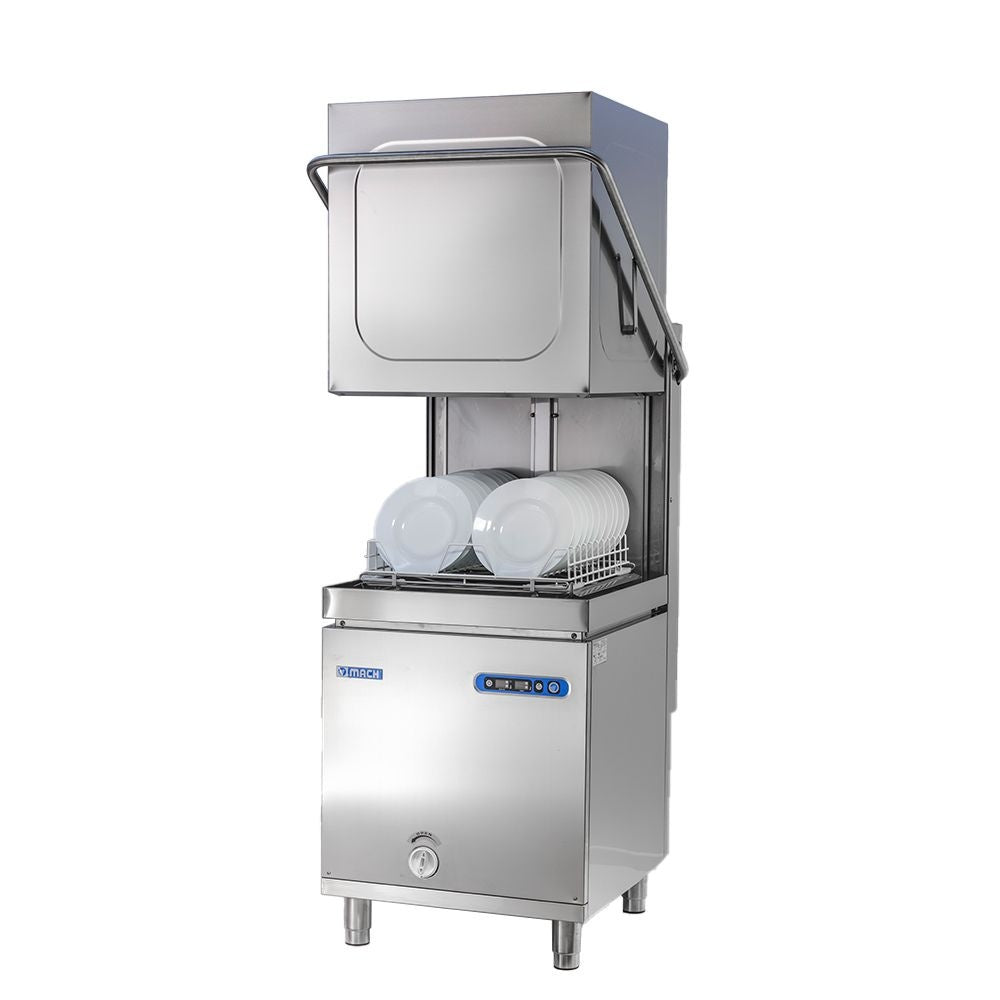

Mach Premium Line Passthrough Dishwasher | 500x500 Basket | HT504.13AT

• Constructed entirely from 100% AISI Stainless Steel with no plastic components. This machine delivers exceptional strength, the highest level of durability, and long-lasting performance, making it ideal for demanding environments.
• Full AISI304 stainless-steel components including armoured stainless steel elements, stainless steel boiler, filters, hinges, upstands, wash arms, rinse arms, plugs and jets.
• Double-wall fully insulated stainless steel construction providing enhanced thermal efficiency, sound insulation and best in class energy consumption.
• Double-walled, fully insulated hood ensures improved insulation and energy efficiency
• Magnetic microswitch automatically cuts off the appliance's operation when the hood is opened, ensuring safety during use.
• Independent stainless steel upper and lower washing and rinsing arms, which are easily removable for effortless cleaning and maintenance.
• Double Walled washing tank is constructed with rounded corners, ensuring easy cleaning, highest hygiene standards ande best in class thermal efficiency.

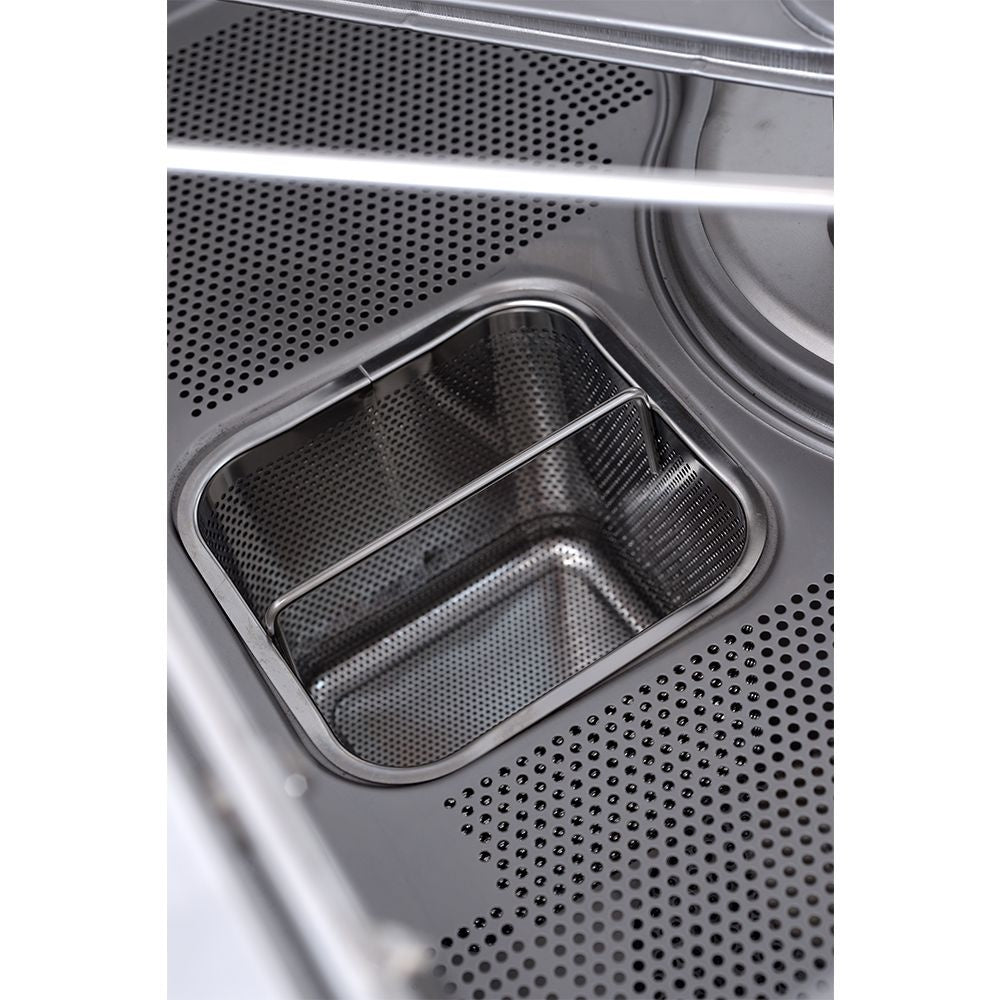

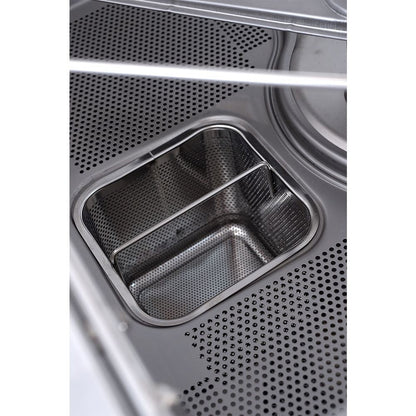

• The full-width stainless steel wash tank filters are easy to remove, providing efficient drainage, best-in-class filtration, and complete access to the tank for thorough cleaning and maintaining hygiene.
• The Drain Pump features front panel filter access to prevent warranty issues and breakdowns, allowing easy removal of foreign material and enhancing the machine's filtration systems.
• The boiler and tank are heated through thermostatically protected armored stainless steel heating elements, ensuring efficient heat exchange.
• The water heating in the tank is indirect, so there is no heating element inside the tank allowing for easy cleaning and Hygiene.It also promotes safe cleaning, longevity of elements and high powered tank heating.
• Built-in insulated atmospheric rinse tank is constructed from AISI 304 stainless steel, providing best in class insulation and durability for optimal performance.
• Water levels are designed to sit below the tank filter line for improved health and safety. This makes them the ideal model for large restaurant chains and contract customers.
• Touch control panel features 5 preset wash cycle times (90-120-150-180-210 seconds) offering easy operation and the flexibility to select the ideal cycle for different cleaning needs.
• The displays show the current temperatures of both the boiler and tank, providing real-time visual monitoring.
• The display features a countdown of the washing cycle in minutes and seconds, providing real-time tracking of the remaining time for each cycle.
• Fully programable digital interface allows complete adjustment of wash and rinse timings aswell as special programs for reverse osmosis and other requirements. It also offers technical onboard diagnostics and error reporting to facilitate easy maintenance
• Outstanding wash results are guaranteed with a high-powered wash pump, ensuring thorough cleaning at 60ºC, followed by a hygienic rinse at 85ºC for optimal sanitation.
• Built-in drain pump with a filter ensures efficient drainage while preventing debris from clogging, maintaining optimal performance
• Built-in secondary powerful rinse booster pump, constructed from stainless steel, guarantees optimal rinse pressure for superior cleaning performance
• Built-in detergent and rinse aid pumps with easy dosage adjustments ensure precise and efficient use of cleaning agents.
• Built-in timed manual cold rinse quickly cools heated glasses and dishes. This function is available when the machine is connected to Cold Water. If the machine is connected to Hot Water, it will act as a secondary Hot Rinse.
• The self-cleaning cycle (CLN) automatically cleans the machine to the highest hygiene standards at the press of a button, ensuring safe handling and minimal effort.
• The system drains 2.5 liters of dirty water between wash and rinse phases, ensuring cleaner results and maintaining high hygiene with regular water changes.
• The washing chamber features a high 41 cm clearance, allowing for the accommodation of larger items and providing flexibility for various washing needs.

Voltage: 240 1N/50Hz or 415 3N/50Hz
Watts: 9900 W
Plug Supplied: No
Booster Pump Power: N/A
Washing Pump: 900 W
Rinse Pump: 300 W
Drain Pump: 40 W
Tank Heating Element: 300 W
Boiler Heating (Supplied): 600 W
Boiler Heating (Configurable): 300 W or 600 W
Tank Capacity: 25 Litres
Boiler Capacity: 13 Litres
Washing Power: 340 to 840 pc/hr
Water Consumption: 3.5 Litres per cycle
Clean Water Discharge: 2.5 Litres per cycle
Rinse Temperature: 82°C
Wash Temperature: 60°C
Washing Height: 410 mm
Basket Size: 500 x 500 mm
Cycle Times: 90-120-150-180-210 seconds
Noise Level: <70 dBA
Warranty: 2 years parts & labour

External Width: 635 mm
External Depth: 725 mm
External Height (Closed Hood): 1460 mm
External Height (Open Hood): 1940 mm
