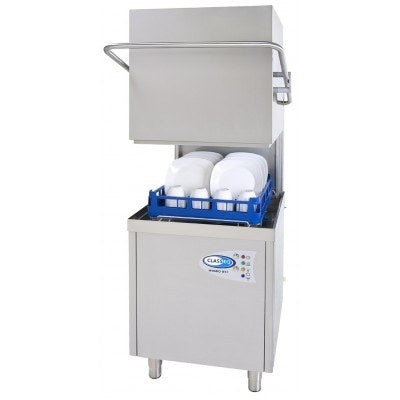

Classeq Hydro P500 Pass Through Dishwasher

Classeq Hydro P500 Pass Through Dishwasher

Classeq was founded in 1977 and became a fully owned subsidiary of Winterhalter in March 2004. Classeq
is manufactured in the United Kingdom at our factory in Hixon.

• 1 ½ & 3 minute wash cycle
• 500mm x 500mm basket
• Simple two touch control panel operation
• High volume Dishwasher
• Optional chemical dispensers
• Optional Integral Water Softener
• Drain Pump
• Integral Approved Air Gap - WRC
• Built in Rinse Booster Pump
• Triple Action Automatic Self Drain & Clean Down Programme
• Continuous Hood Clean System
• Single piece wash arms provide highly effective wash action
• Removable basket guides
• Heavy duty easy to use controls
• Primary and secondary protective filter system
• 30 amp single phase or 16 amp three phase

Specifications:
• Width: 630 mm
• Depth: 720 mm
• Height: Hood Closed 1470 - 1520 mm
• Height: Hood Open 1890 - 1940 mm
• Rack size (square): 500 mm
• Maximum clear entry height: 385 mm
• Unpacked weight: 130 kg
• Packed weight: 140 kg
• Hot water mains potable supply: ¾ BSP Isolator
• Water Supply Temperature: 60 C maximum
• Water Inlet from floor level: 265 – 315 mm
• Water Pressure: Min 2.0 / Max 6.0 Bar
• Required Water Flow: 8 litres/minute
• Drain Type: Pumped
• Drain Size: 40 mm
• Operating voltage
- 220/50/1: Std
- 400/50/3: No
• Amps required: 1 phase- 30 Amps
• Amps required: 3 phase-13 Amps
• Wash Tank Heating: 4.05 kW
• Rinse Boiler Heating: 6.0 kW
• Wash Pump Size: 0.74 kW
• Wash Pump Capacity: 380 litres/minute
• Wash Tank Capacity: 39 litres
• Wash Tank Operating Temperature: 55 C
• Rinse Boiler capacity: 7.5 litres
• Rinse Boiler Operating Temperature: 80 C
• Rinse water Consumption (@2 Bar): 3.25 litres
• Maximum Stand Pipe Height from floor: 700 mm
